Brief -
Construction of a logistics warehouse with accompanying offices over 2 stories

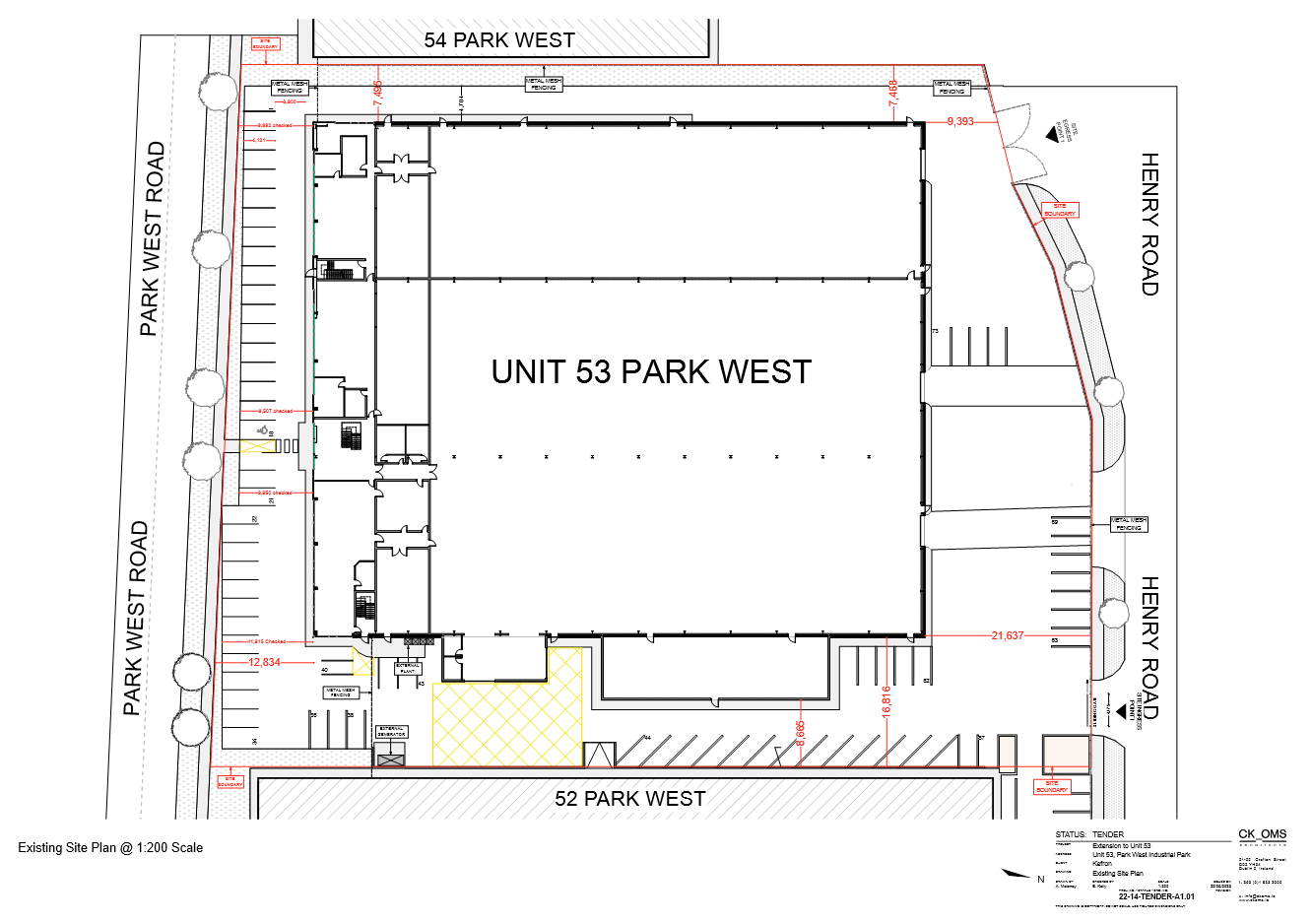

Site-
53 Park West Road, Cherry Orchard, Dublin, Ireland
Project Type -
Warehouse w/ Office
Construction Type -
Steel frame with Kingspan insulated wall and roof panels
Area -
6,731 sq.m
Software's used -
Archicad

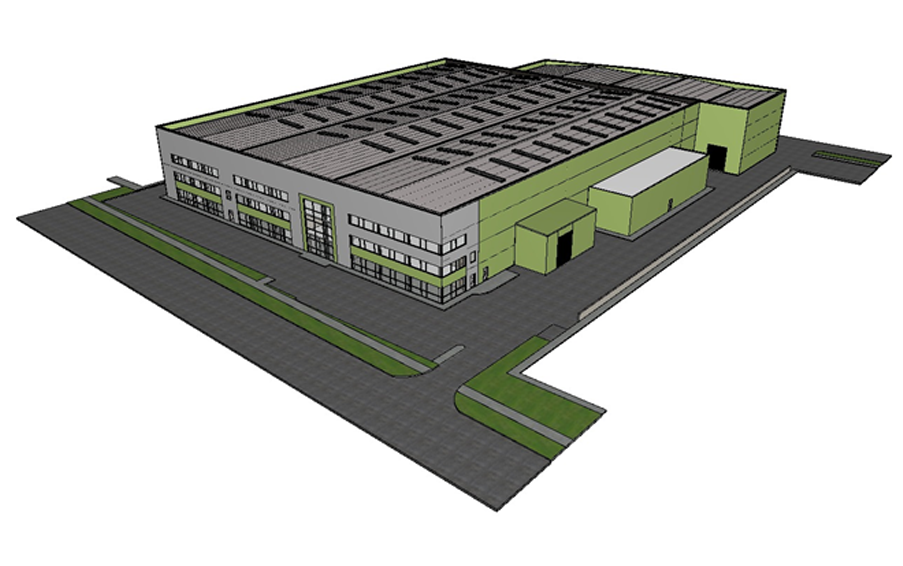

3D Model

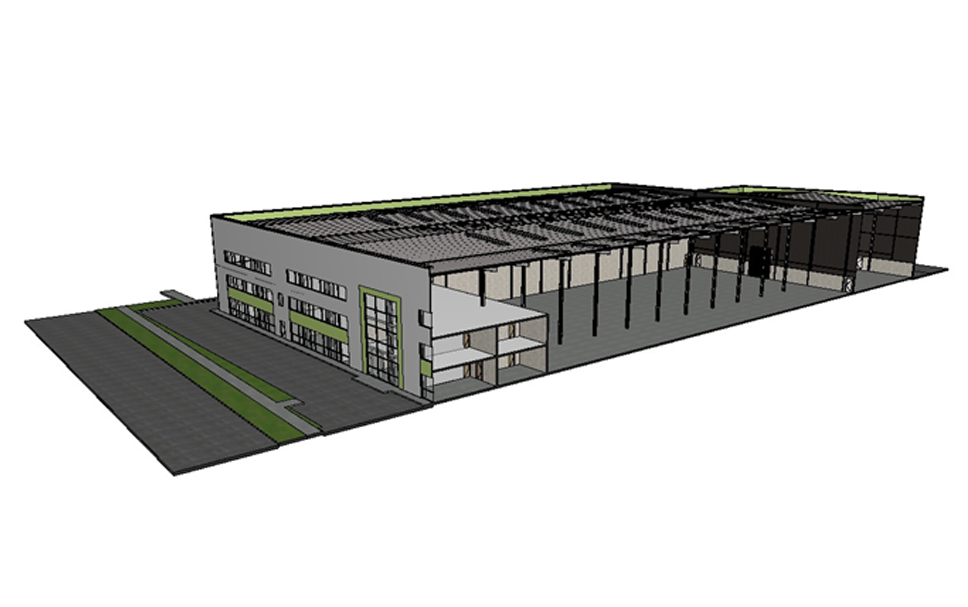

Section through 3D Model

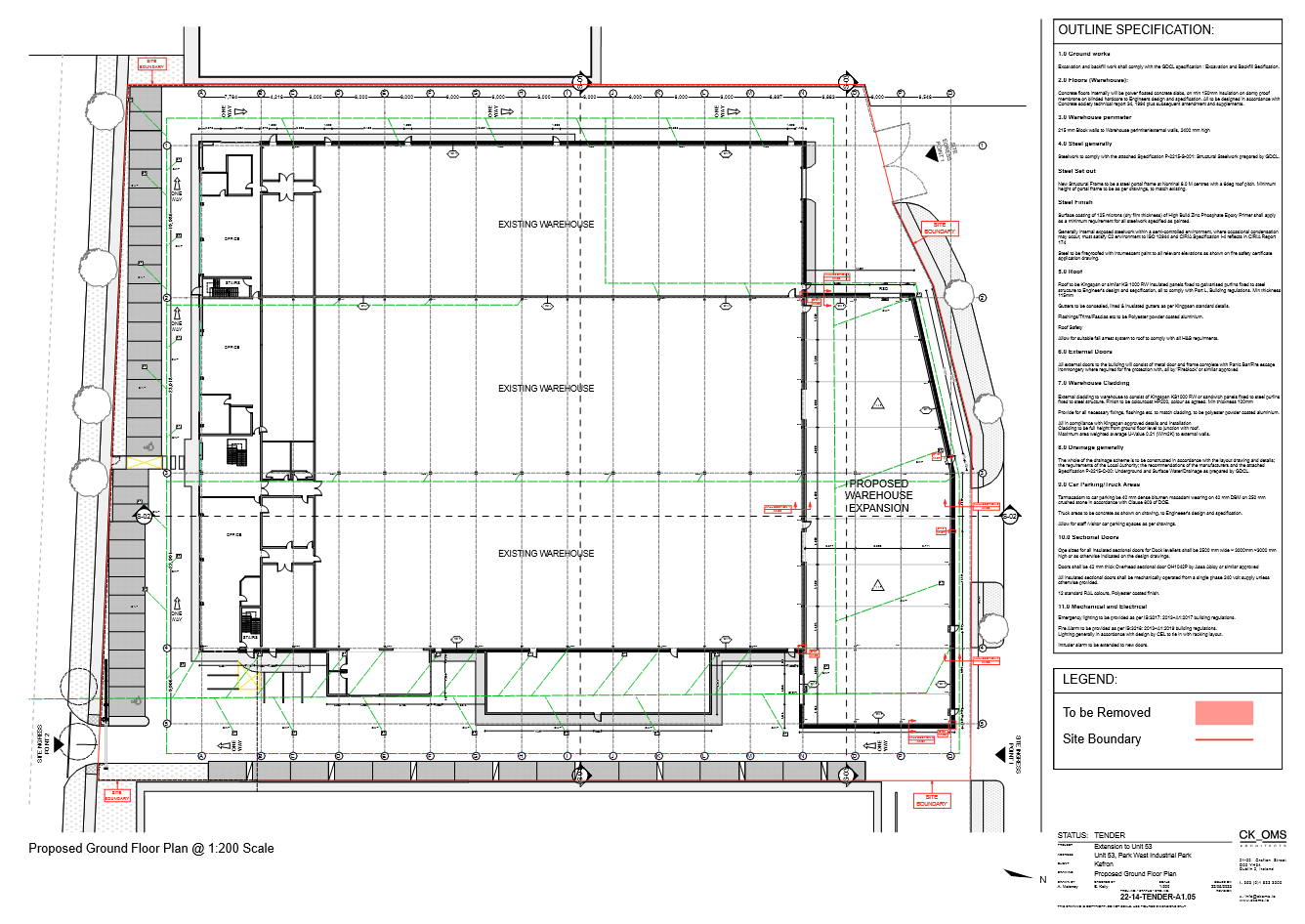

Proposed Ground Floor Plan

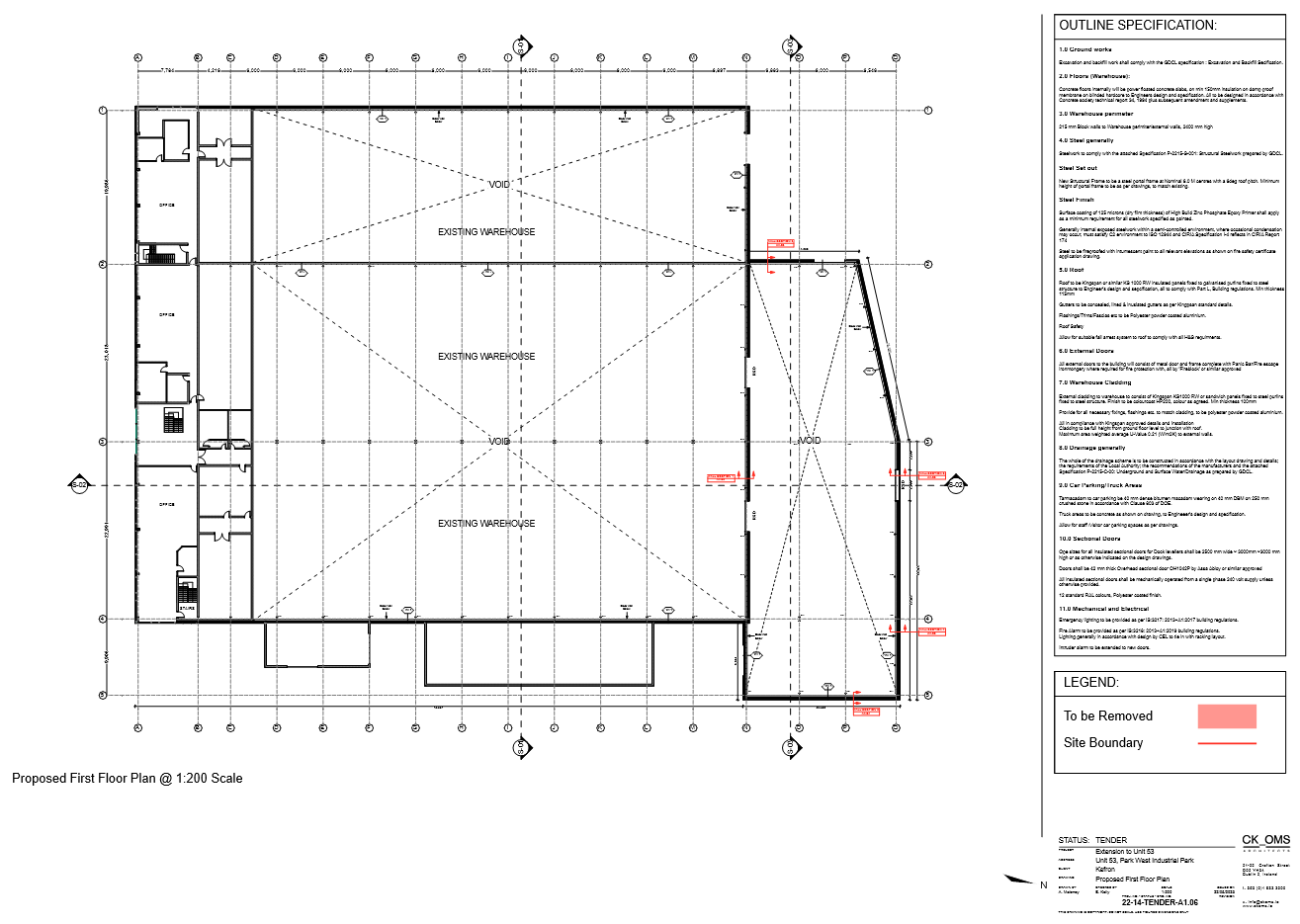

Proposed First Floor Plan

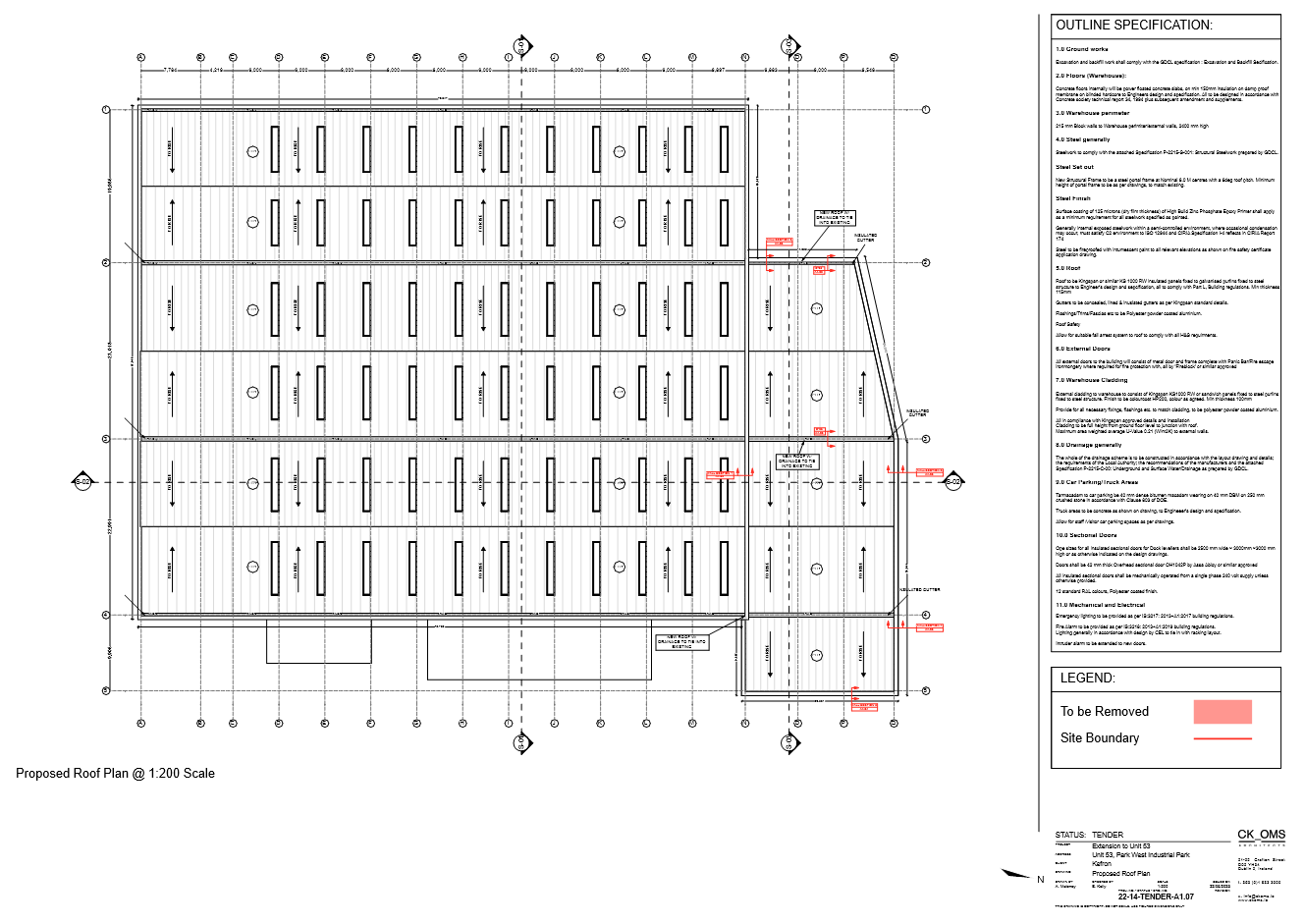

Proposed Roof Plan

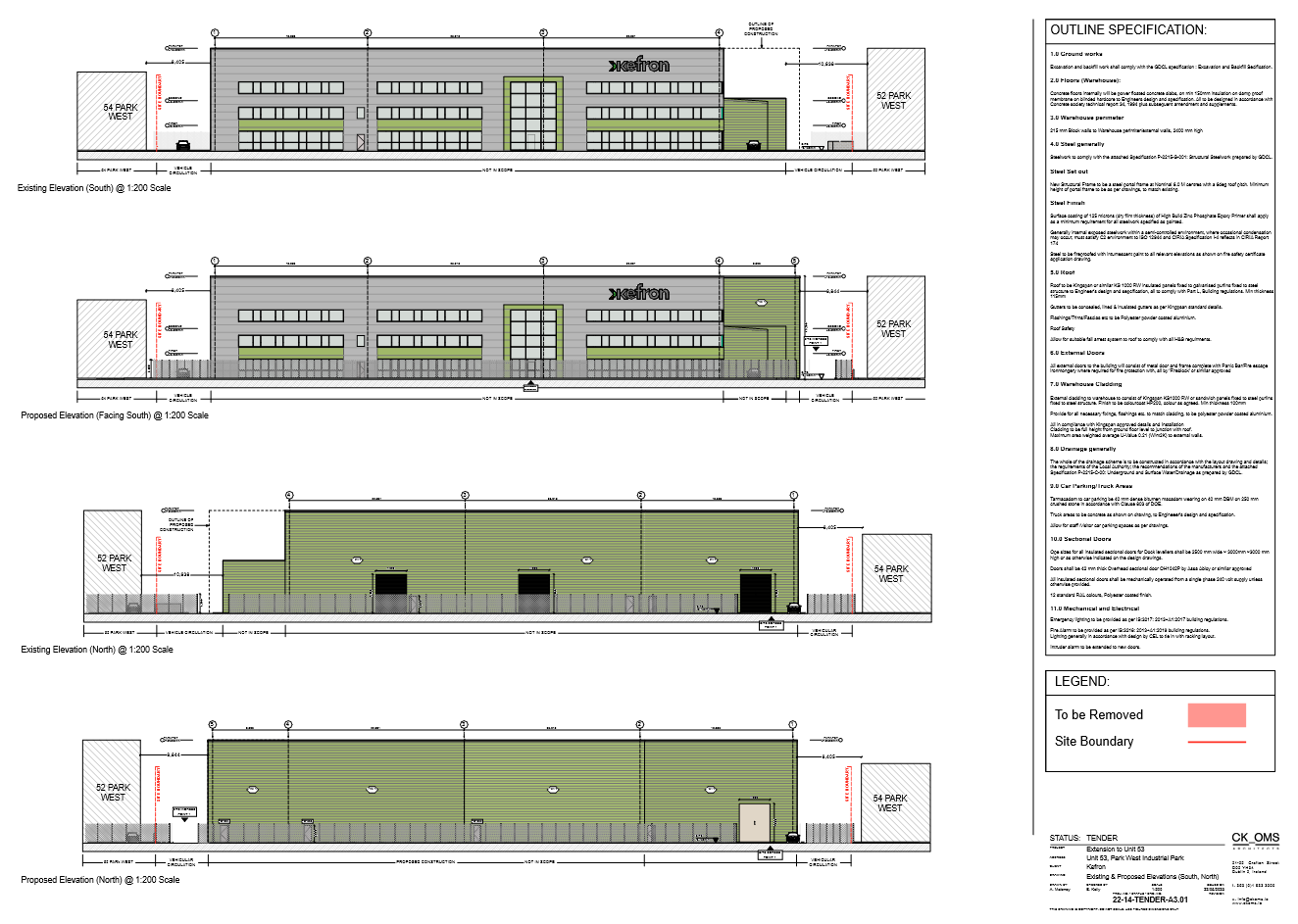

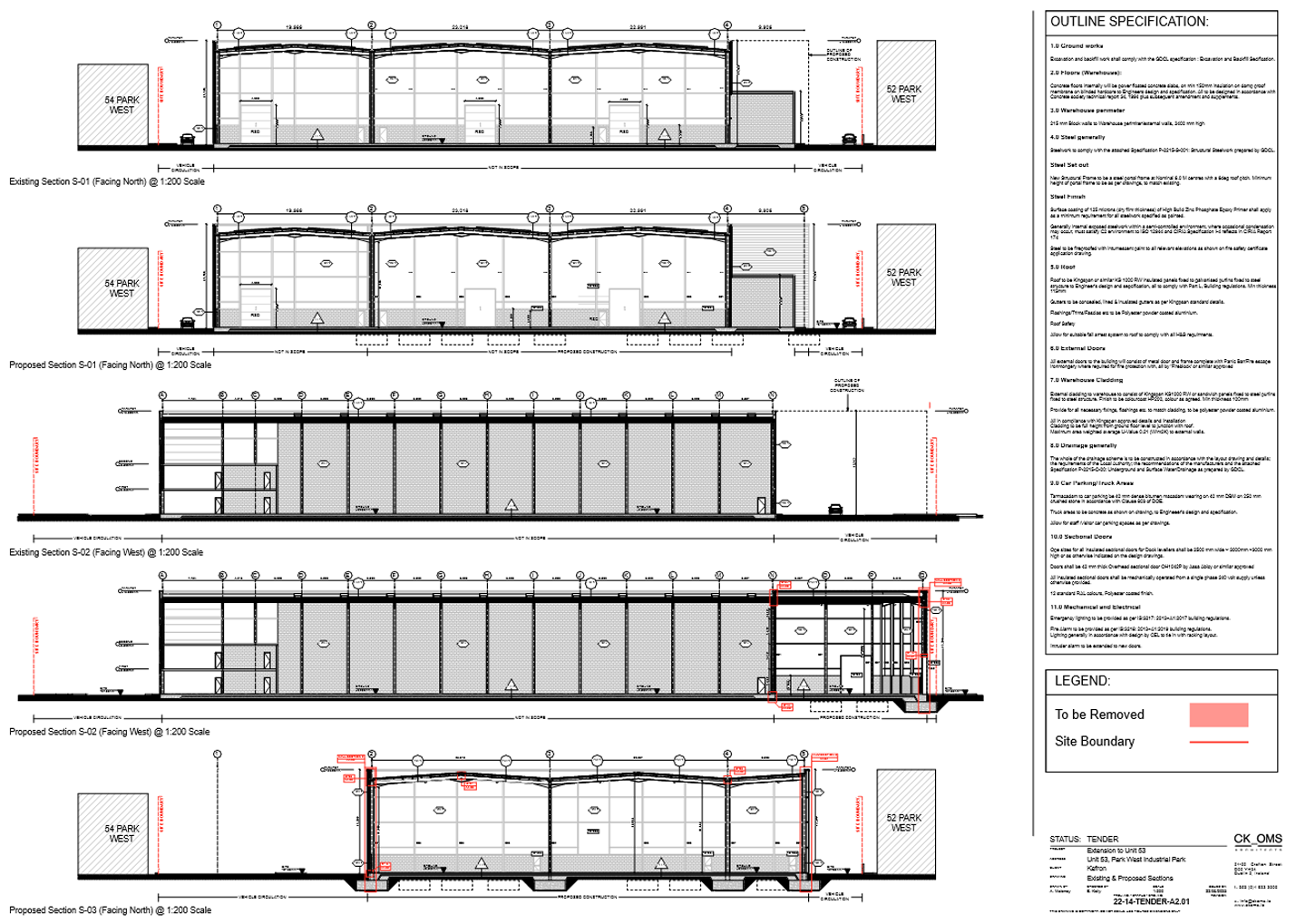

Existing & Proposed Elevations

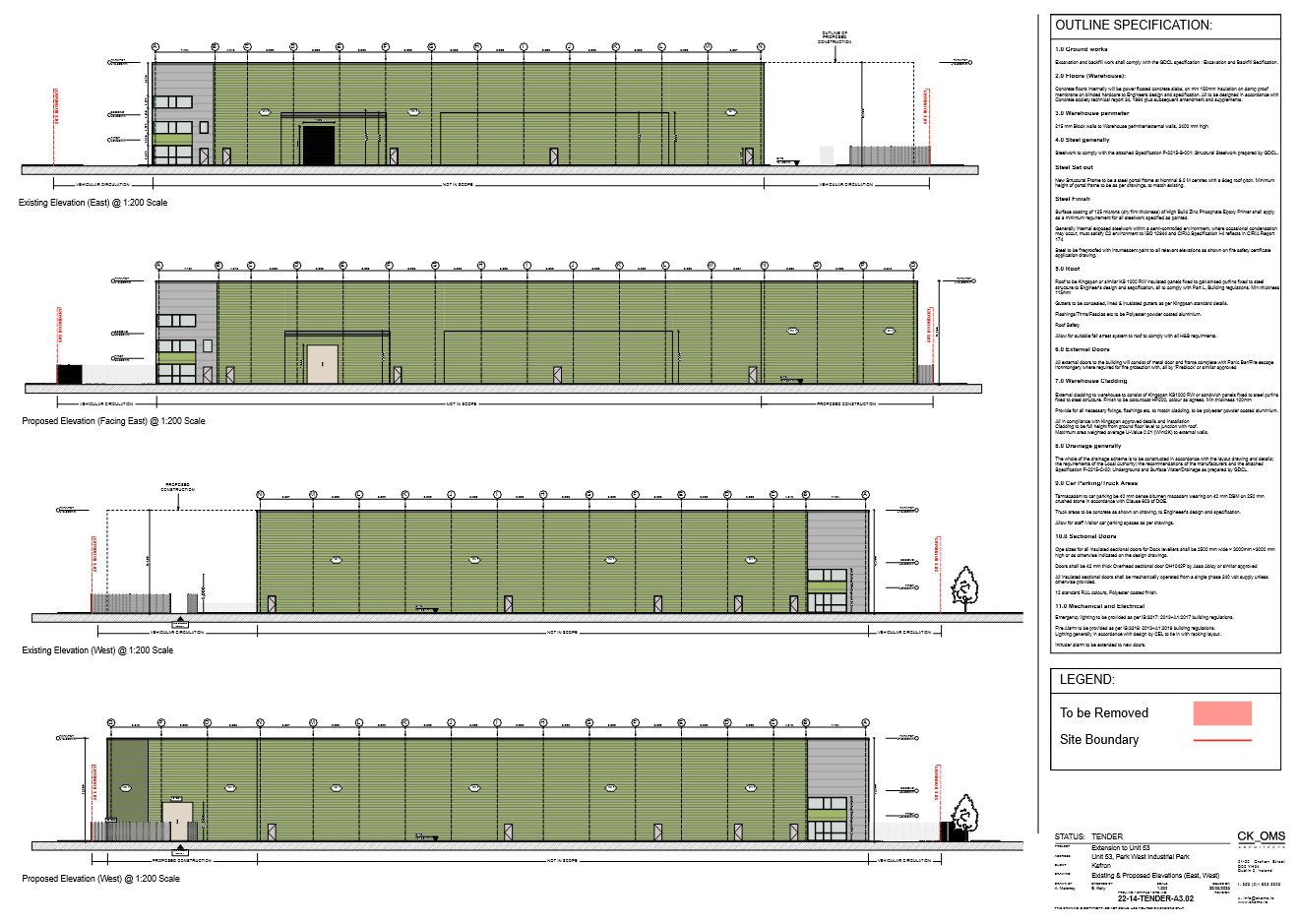

Existing & Proposed Elevations

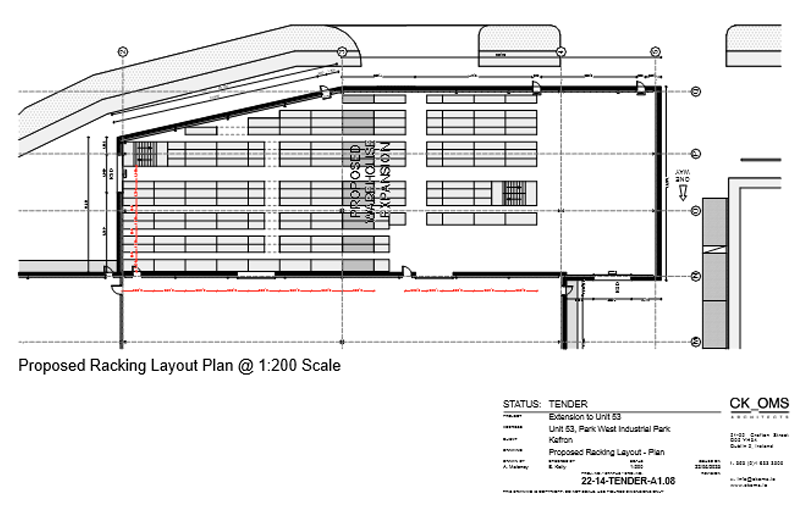

Proposed Racking Plan

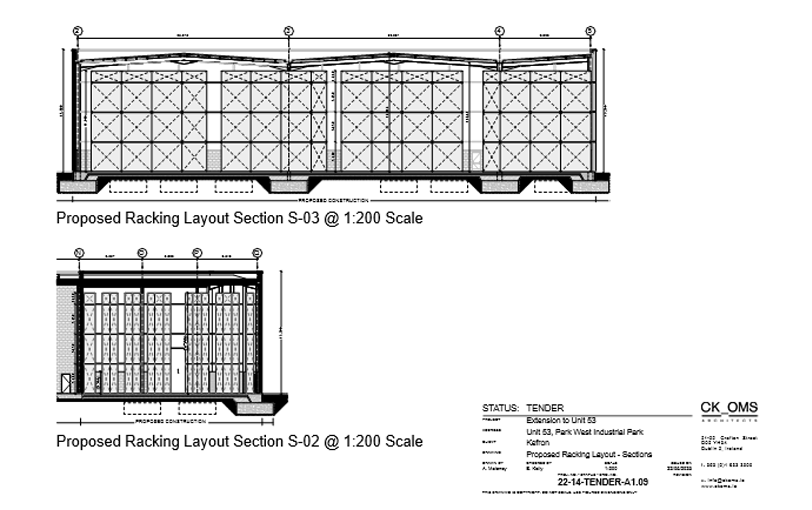

Proposed Racking Section & Elevation

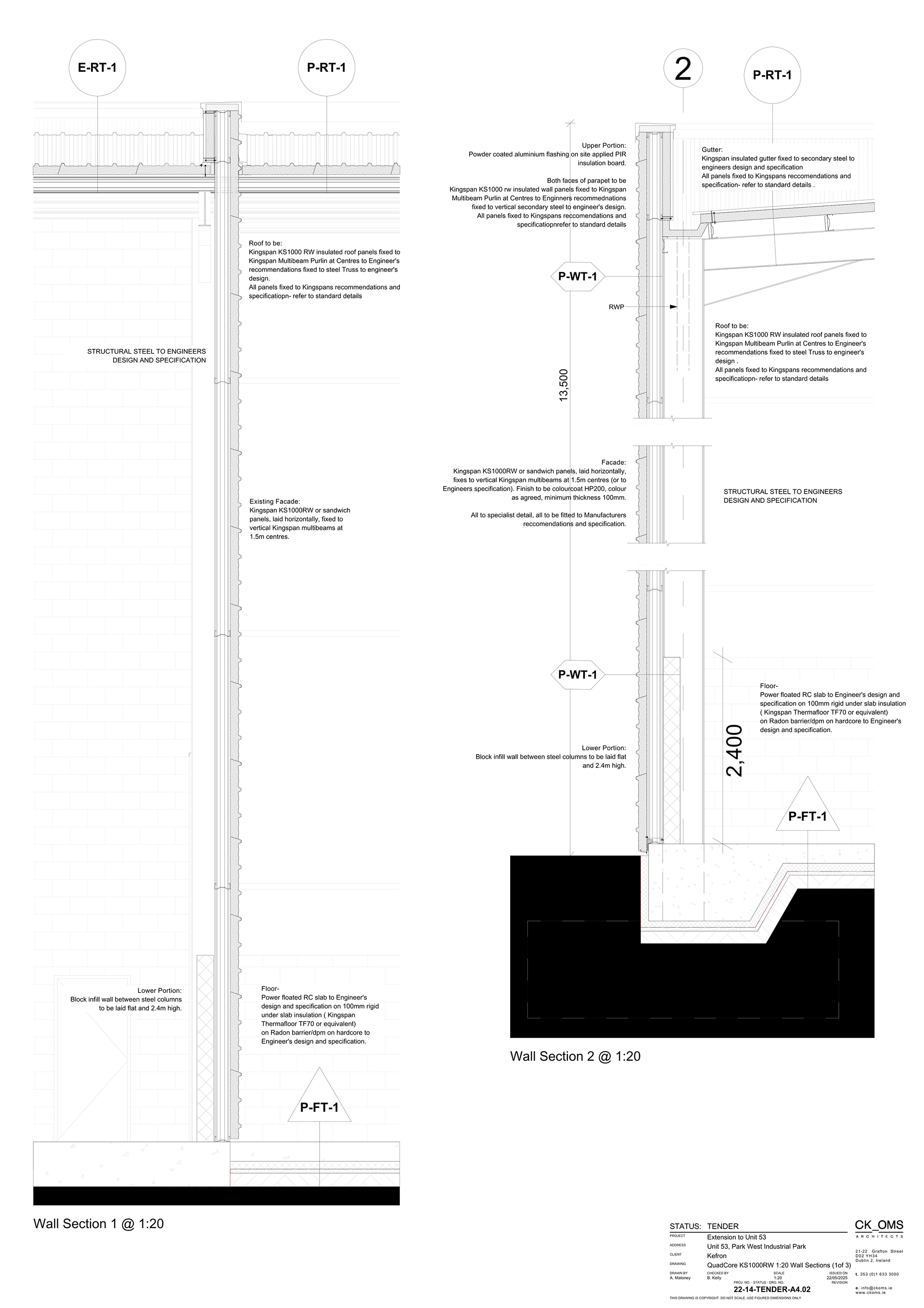

1:20 Sections

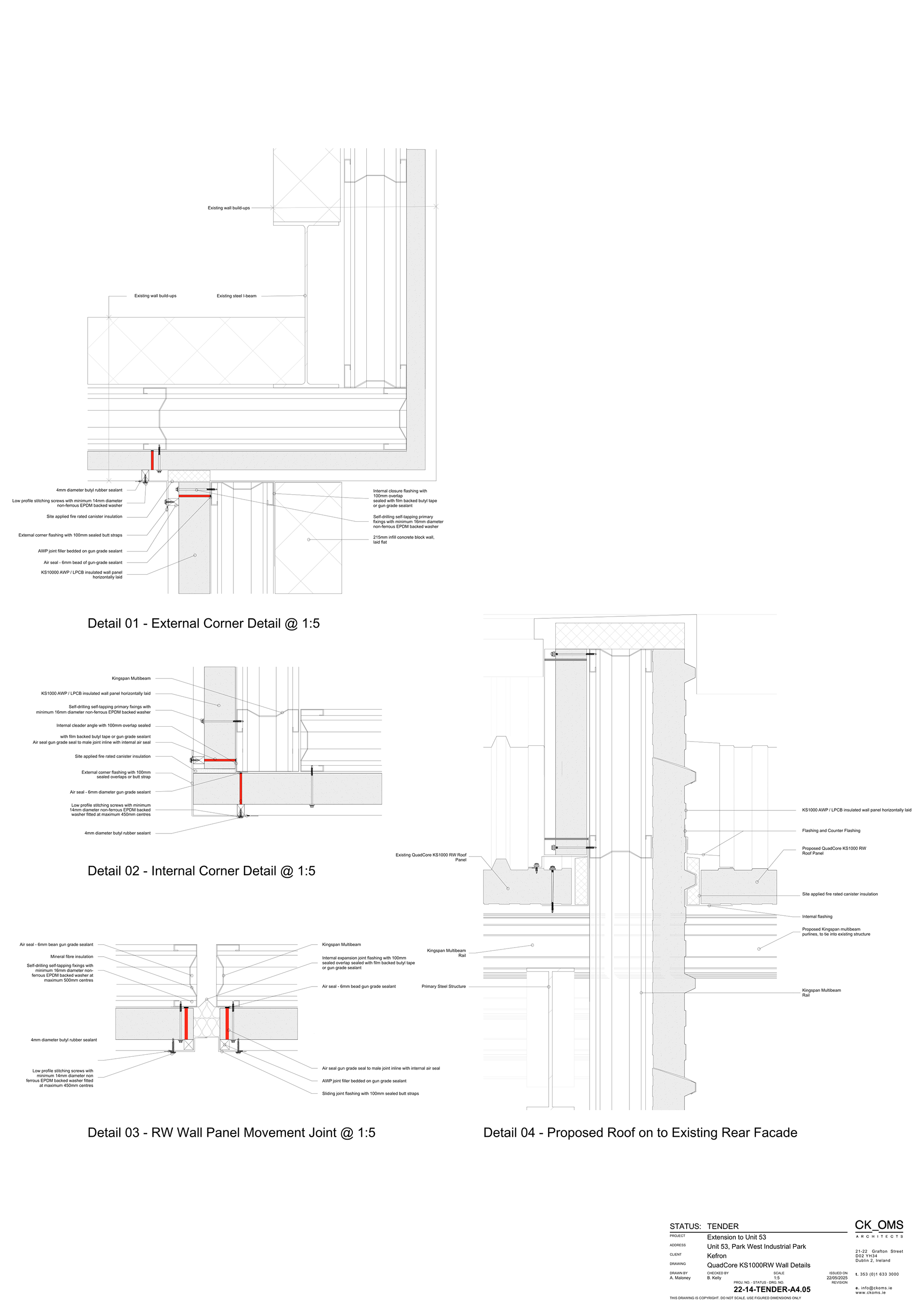

Wall Details

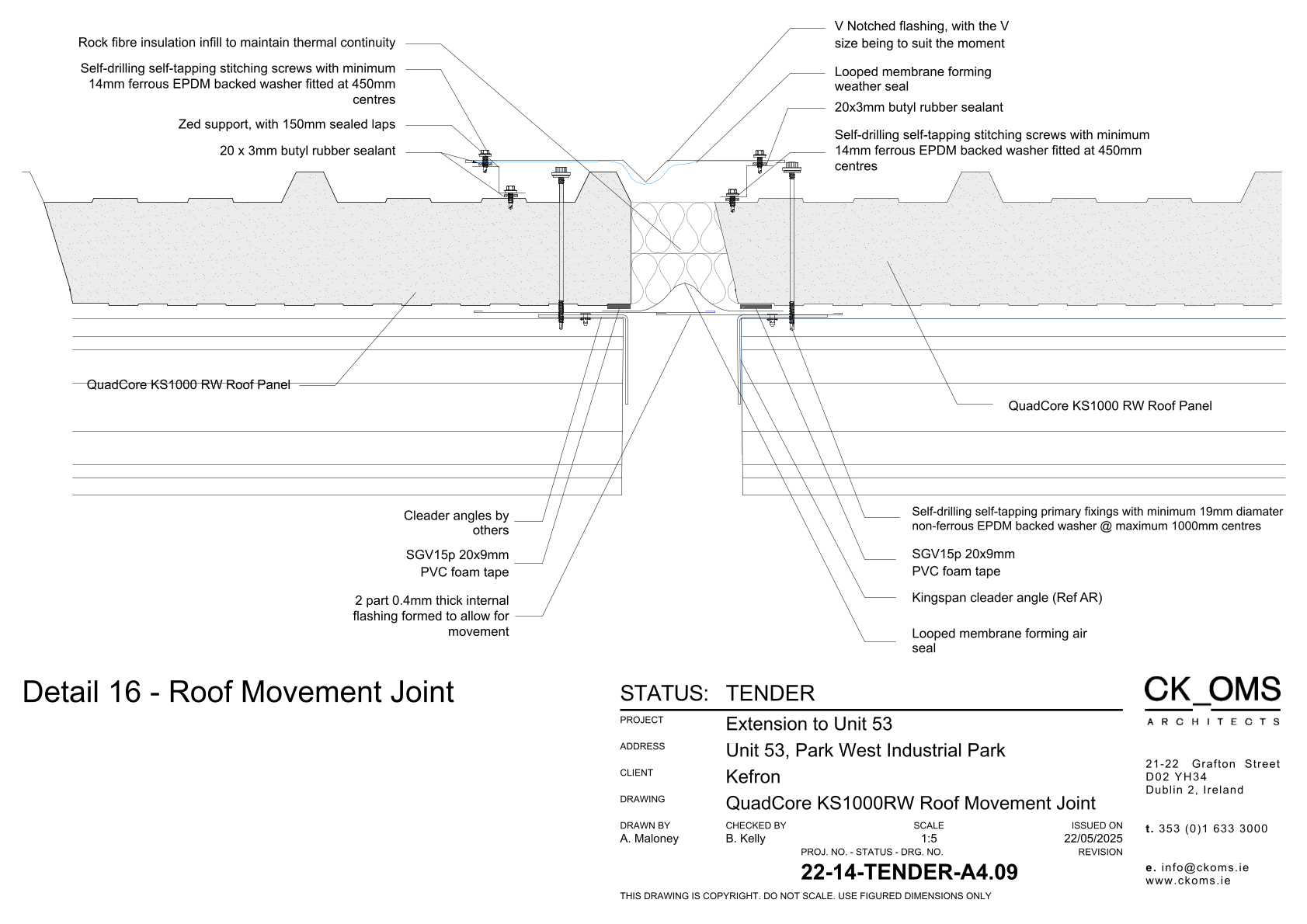

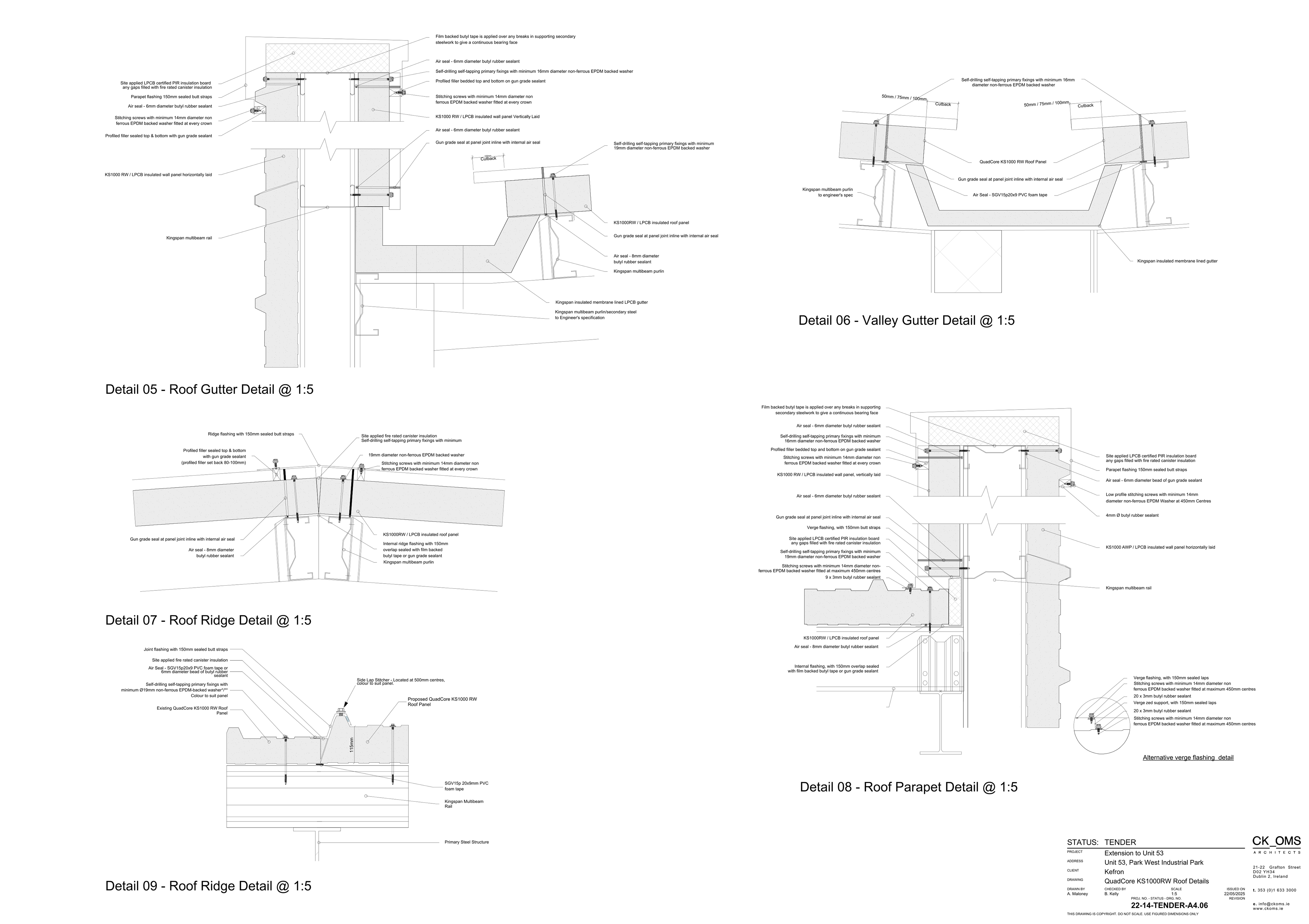

Roof Details

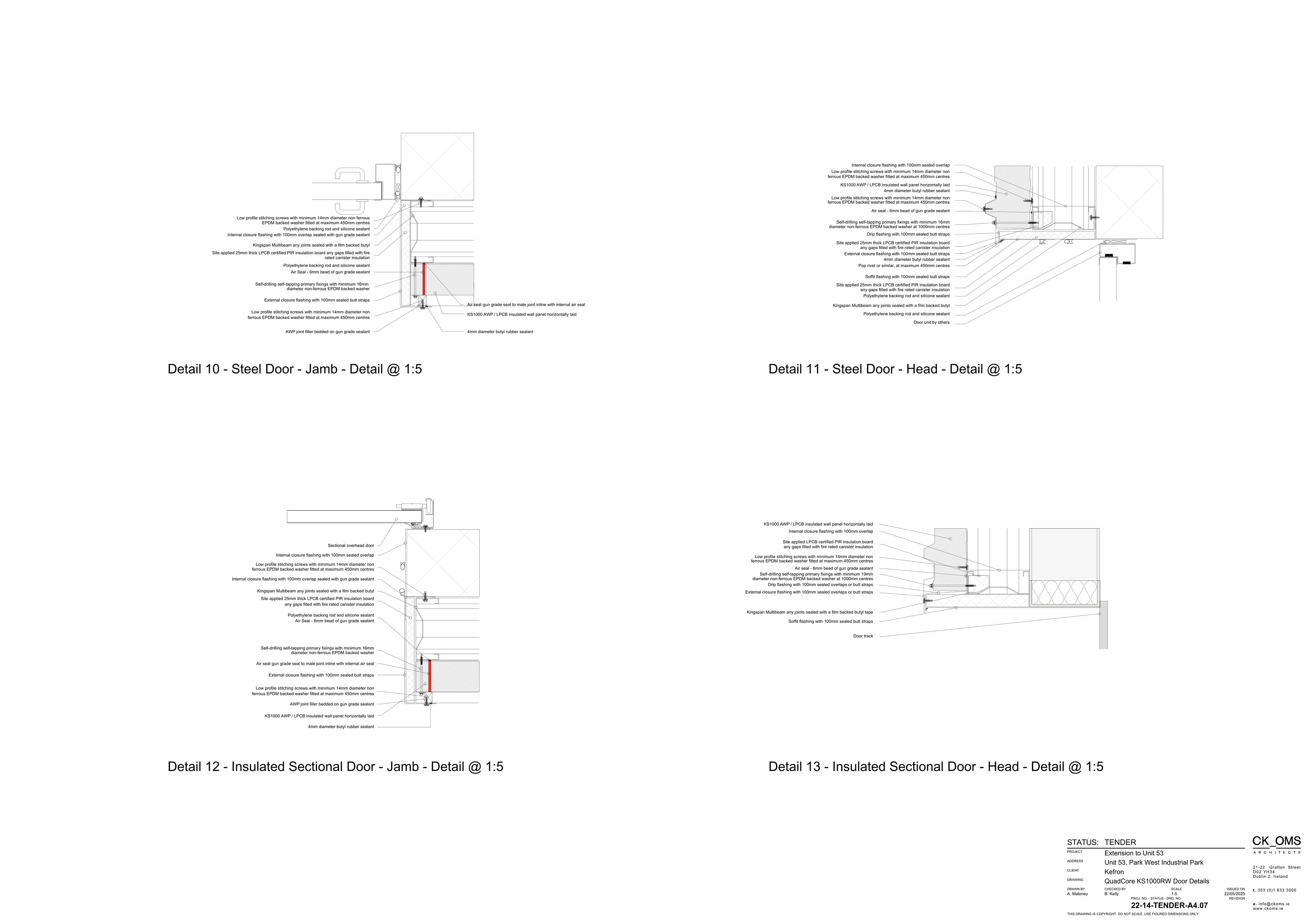

Door Details
